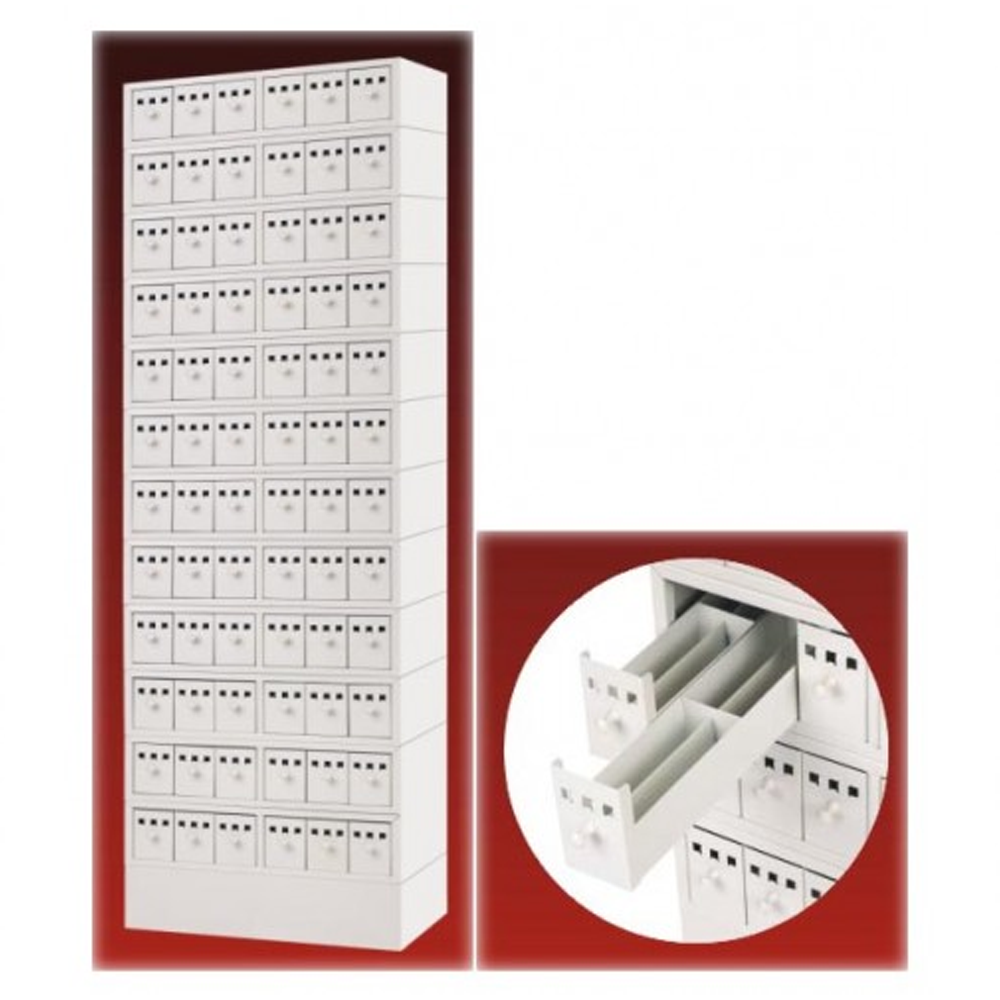

Slide Cabinet (KD-101-1 Slide Cabinet with Lock)

Add to Wishlist
Add to Wishlist


The base use Cold-rolled steel plate SPCC1.2 from Baosteel; the cabinet use Cold-rolled steel plate 0.8; the drawer use Cold-rolled steel plate 0.8.

The biomedical slide cabinet divides into 6 grids and 12 layers with total of 72 cells, loadingĀ more than 60,000 pcs of regular sized microscope slides.

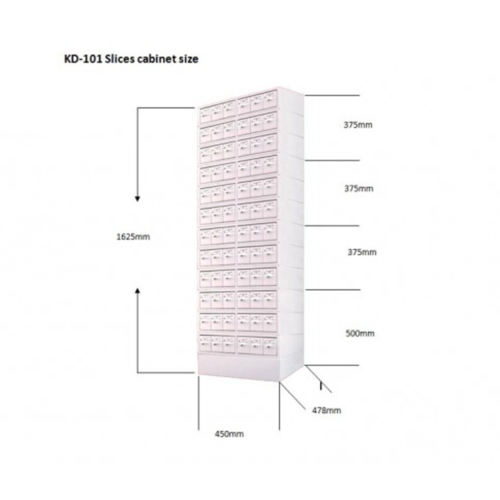

Size: H1620 x W403 x D478 mm

Weight: 113 kgs

Specialized slide drawer, ABS slide plate, inner anti-skip lock. Handle use ABS Chromium plating and it divides into six grids each drawer and convenient for storage.

Surface treatment: Defatted oil, Table regulator, Zinc phosphating, passivation, Powder spraying.

Slot: The slot is made by special mold.

Mark groove: Integration forming. The unique drawer lock have declared national patent.
