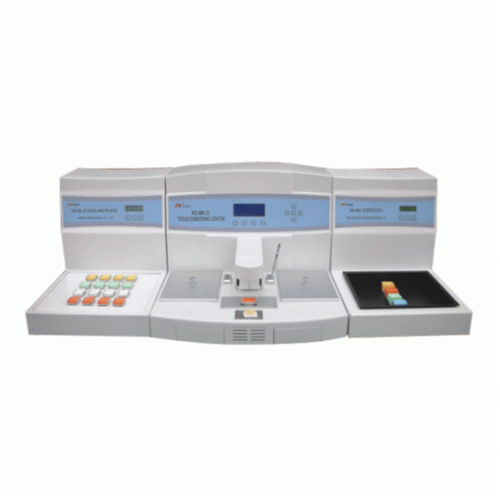

Tissue Embedding & Cooling System

Add to Wishlist
Add to Wishlist



  • Fully programmable computer control allows automatic system start and stop anytime (weekly)

  • The use of new silicon rubber heating elements achieves rapid even, reliable, energy saving heating

  • Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and is LCD-displayed with icons demonstrating current working status

  • Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other

  • Five temperature-control channels and multiple overheating protection mechanisms provide safe, reliable, and energy-saving protection

  • Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system

  • Flexible module configuration options through a design which separates the Cryo Module from Embedding Module, enabling easy maintenance

  •  Freezing temperature can be adjusted due to the use of a new-type inverter compressor

  • The temperature of the cryo plate equipped with this system is controlled independently and can be used to freeze tissue more conveniently, particularly for small specimens

  •  Paraffin Chamber with super large capacity enables embedding a large number of specimens at same time

  • Safe and reliable low-voltage illuminating system with two ON/OFF control options (finger or foot-operated)

  •  Heated working plate and forceps wells make tissue embedding more convenient

  • High-precision clock makes time setting more convenient and accurate

  • There is an automatic actuation, can make sure the unit will continue working after a power-down

  • Using the imported solenoid valve to help the Paraffin Dispenser to adjust the flow rate

  • This unit set the control power socket, it can work with BL and BC and the same time.

Technical Specifications:

  • Paraffin Chamber Capacity: 4 liters

  •  Temperature Range of Forceps Wells: RT – 85 C

  • Temperature Range of Paraffin Chamber: RT – 85 C

  • Temperature Range of Thermal Storage Compartment: RT – 85 C

  • Temperature Range of Working Plate (hot plate): RT – 85 C

  • Temperature Range of Paraffin Dispenser: RT – 85 C

  • Temperature Range of Thermal Storage Plate: RT – 85 C

  •  Temperature Control Precision: +/-1%

  • Thermal Storage Compartment Capacity: 4.5 liters

  • Paraffin Flow Control: Paraffin flow control via finger touch plate and optional foot pedal

  • Fully programmable ON/OFF control allows automatic system start and stop anytime weekly

  •  Temperature Range of Cryo Module: RT to -20 C

  • Temperature Setting of Cryo Module: the optimal working temperature is approximately -15 C and the temperature is under delay protection

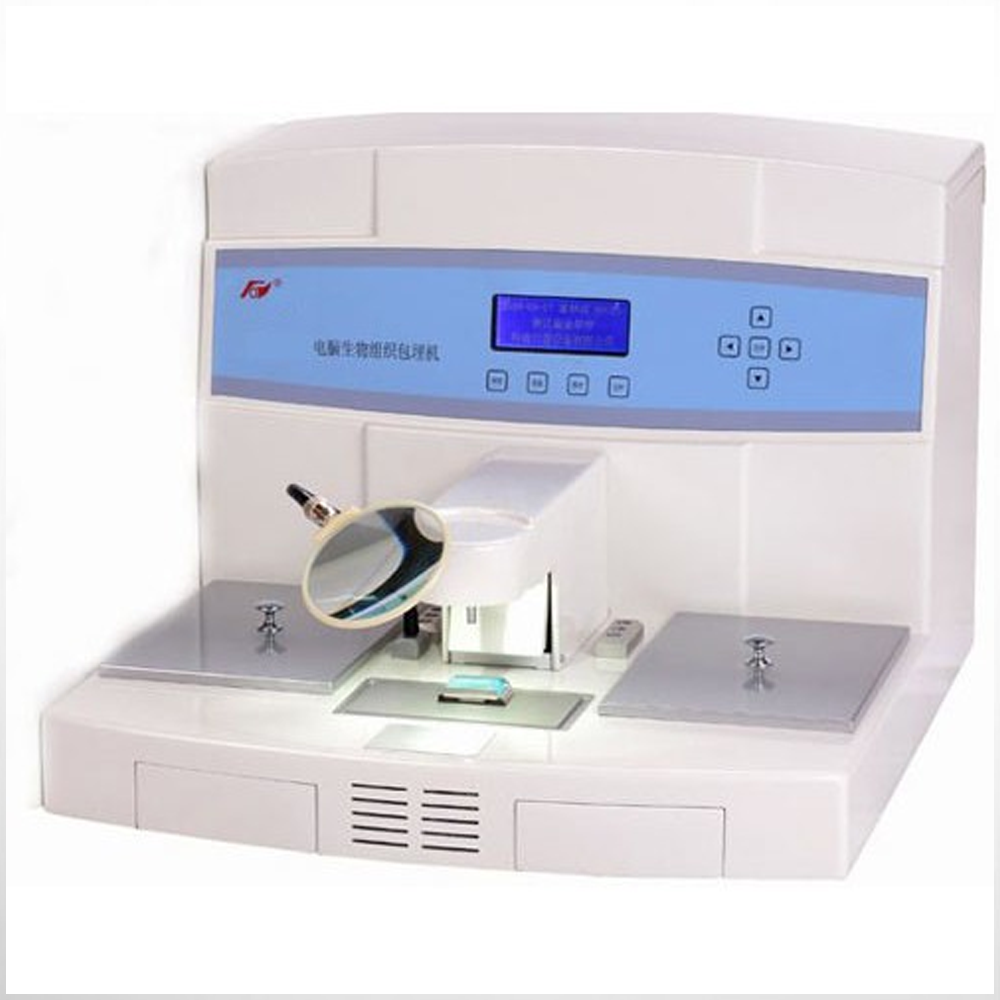

  • Dimensions of working plate (BM III): 155x90mm

  • Dimensions of small cold plate (BM III)60x50mm

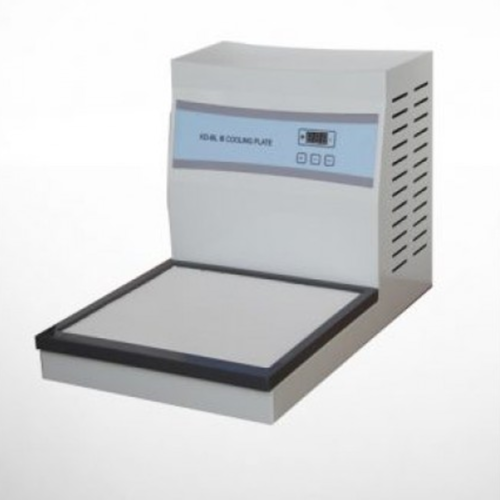

  • Dimensions of Cryo Module (BL III): 340x322mm

  • Working Voltage: AC 220V +/-10% 50Hz (standard model); AC110V +/-10% 60Hz

  • Power:

    •  1000W (KD-BM III)

    • 300W (KD-BL III)

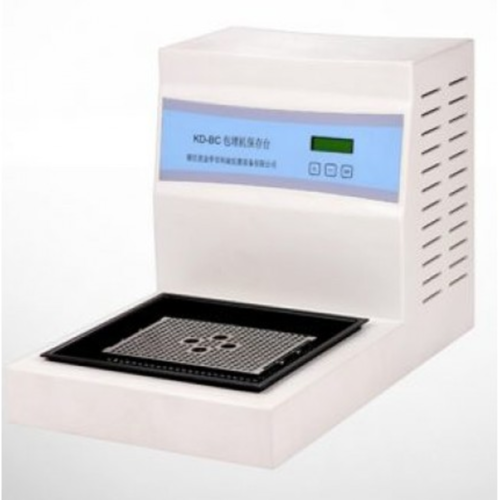

    • 180W (KD-BC)

  • Dimensions:

    • 670x590x445 mm (WxDxH) (KD-BM III)

    • 685x380x430 mm (WxDxH) (KD-BL III)

    • 620x380x425 mm (WxDxH) (KD-BC)

  • Net weight:

    • 33kg (KD-BM III)

    • 26kg (KD-BL III)

    • 15kg (KD-BC)
